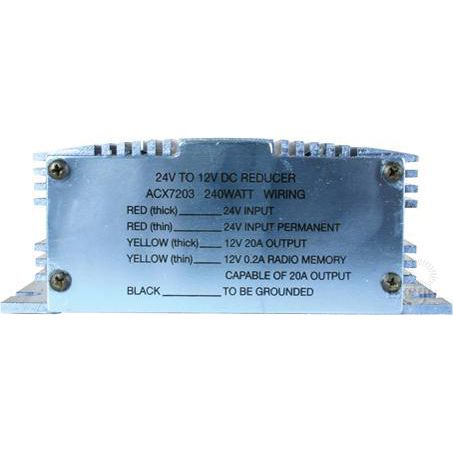

OEX Voltage Reducer 24V To 12V - Switch Mode Single Circuit - 20A (With Memory wire for Radio)
Detailed Overview of OEX Voltage Reducer 24V To 12V - Switch Mode Single Circuit
| Part No. | ACX7203 |
| Type | VOLTAGE INVERTER / REDUCER |
| Brand | OEX |
| Unit of Measure | EACH |
| Description | OEX Voltage Reducer 24V To 12V - Switch Mode Single Circuit - 20A (With Memory wire for Radio) |
| Warranty | One Year |
| Number of Circuits | 1 |
| Voltage From | 24 |
| Voltage To | 12 |
| Item Type | Switch Mode |
| Continuous Rating | 20A |
| Dimensions | 171 x 120 40mm |
| Weight | 1.06kg |
| Features | • 24V to 12V • 20A • 171 x 120 x 40mm • Single circuit switch mode voltage • Reducers with memory wire: memory output wire (constant output for radios) • Over voltage and short circuit protection • LED indicator to show function of the unit • High technology module power conversion provides over 90% power efficiency |
| Product Group 1 | AUTO ELEC ACCESSORIES |
| Product Group 2 | VOLTAGE CONTROL |
Key Features of OEX Voltage Reducer 24V To 12V - Switch Mode Single Circuit
The OEX Voltage Reducer 24V To 12V - Switch Mode Single Circuit is designed to efficiently step down a 24V input voltage to a stable 12V output with a maximum current of 20A. Its switch mode technology ensures high efficiency, reducing heat generation and energy waste. The single circuit design simplifies installation and integration into various automotive or industrial applications. Additionally, the built-in memory wire feature supports radio systems, maintaining preset memory settings even when power is interrupted. This combination of high current capacity, efficient switching, and memory wire functionality makes this product highly reliable and ideal for modern electrical setups.
Benefits of Using the OEX Voltage Reducer in Automotive and Industrial Applications
Using the OEX Voltage Reducer 24V To 12V - Switch Mode Single Circuit offers numerous benefits, especially in automotive and industrial environments. It reliably converts higher 24V power sources to the common 12V standard needed for many devices such as radios, sensors, and control units. The memory wire ensures that radios and other audio equipment retain stored settings and presets, providing convenience and saving user time. Its 20A current capacity accommodates high-demand components without overheating. The compact design allows installation in tight spaces, while the efficient switch mode operation contributes to longer component life and less maintenance, enhancing overall system performance.
Installation and Compatibility Insights for the OEX Voltage Reducer 24V To 12V - Switch Mode Single Circuit
Installing the OEX Voltage Reducer 24V To 12V - Switch Mode Single Circuit is straightforward due to its single circuit configuration and clear wiring instructions. It is compatible with a wide range of 24V electrical systems requiring a 12V output, making it suitable for trucks, buses, boats, and industrial machinery. The integrated memory wire helps preserve radio presets automatically, eliminating the need for manual resets after power loss. Designed with safety features including overload and short circuit protection, it provides secure operation under varying electrical loads. This voltage reducer is a dependable, plug-and-play solution ideal for enhancing 12V device functionality from 24V power sources.
