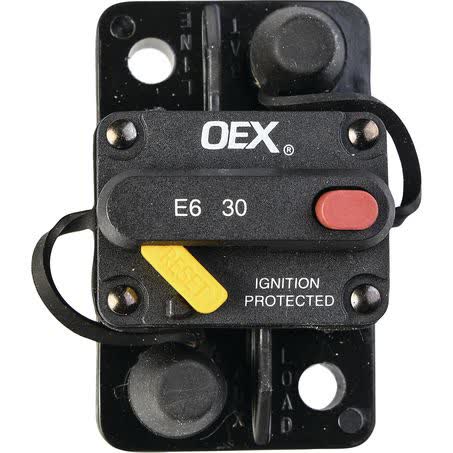

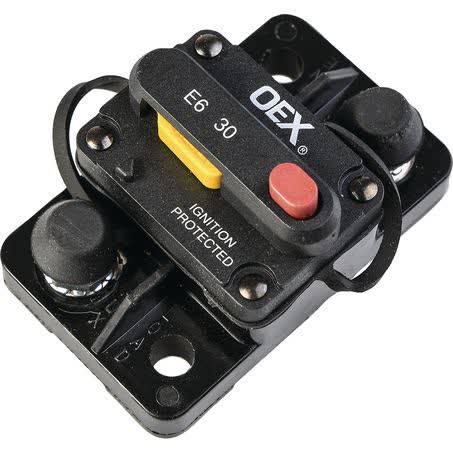

OEX 30A MINI MANUAL RESET CIRCUIT BREAKER TYPE 3 SWITCHABLE - SINGLE PACK
by OEX
Original price
$86.58
-
Original price
$86.58
Original price
$86.58
$86.58
-
$86.58
Current price
$86.58
| Part No. | ACX2083BL |
| Type | MANUAL RESET | Brand | OEX |
| Unit of Measure | EACH | Description | OEX 30A Mini Manual Reset Circuit Breaker, Type 3, Switchable - Single Pack |
| Warranty | One Year | Note | Terminal / lug to suit: 6mm or ¼ inch |
| Amps | 30A | Breaker Type | Manual Reset |
| Item Type | Mini Circuit Breaker | Pack Qty | 1 |
| Features | • 30 Amp • Compact Mini Surface Mount • Dimensions: 58.2mm (H) x 35.7mm (W) x 34.7mm (D) • Type 3 - Manual Reset ( with switchable), rated 32V DC • #10-32 threaded studs. Terminal / lug to suit: 6mm or ¼ inch • IP66 • Housing: Thermal plastic UL rated 94VO • Operating Temp: -40°C to 85°C • Compliance: SAE J553, J1171, UL1500 (ignition protected) • Protective stud insulators included • Pack Quantity: 1 • Single units available in 10A, 15A, 20A, 30A, 40A, 50A & 60A • Packs of 5 available in 40A, 50A & 60A |
Product Group 1 | AUTO ELEC ACCESSORIES |
| Product Group 2 | FUSES BREAKERS RELAYS SWITCHES |
