OEX BATTERY MASTER ISOLATION SWITCH ONOFF SPST CONTACTS RATED 250A 24V

by OEX
Original price $0
Original price $182.00 - Original price $182.00
Original price
Current price $182.00
$182.00 - $182.00
Current price $182.00
Part No. ACX3424
Type BATTERY MASTER SWITCH
Brand OEX
Unit of Measure EACH
Description OEX Battery Master / Isolation Switch On/Off SPST (Contacts Rated 250A @ 24V)
Warranty One Year
Number of Terminals 2
Power Rating (Amp) 250
Switch Action On - Off - SPST
Voltage 12 or 24
Lamp Colour/s Not Applicable
Mount Diameter 24mm
Number of Poles 1
Number of Positions 2
Switch Type Battery Master / Isolation
Switch Illumination Non Illuminated
Weight .8kg
Features • 12V or 24V
• 250 Amp
• Function: On - Off - SPST
• Amperage peak: 2,500A
• 5 seconds on, 3 minutes off
• Main stud terminal: 2 x 10mm
• Lockout incorporated in handle
• IP65 rated, dust cover protection
• Recessed mount requires 65mm hole, mounting centres 100mm

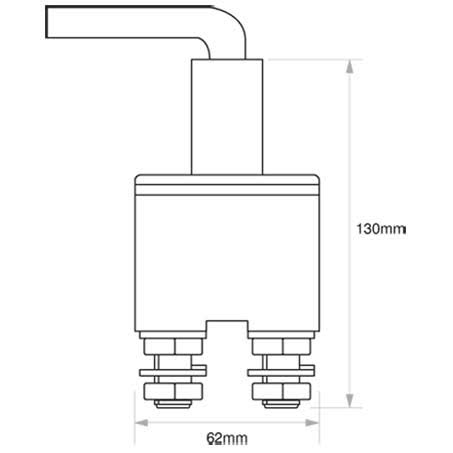

• Dimensions: 62mm x 130mm
Product Group 1 AUTO ELEC ACCESSORIES
Product Group 2 FUSES BREAKERS RELAYS SWITCHES
