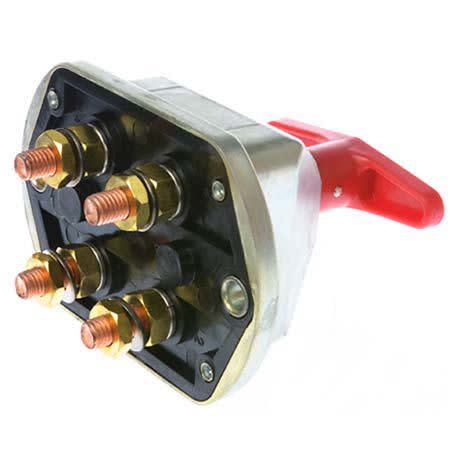

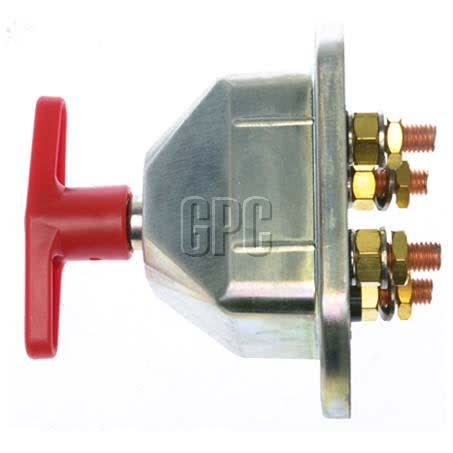

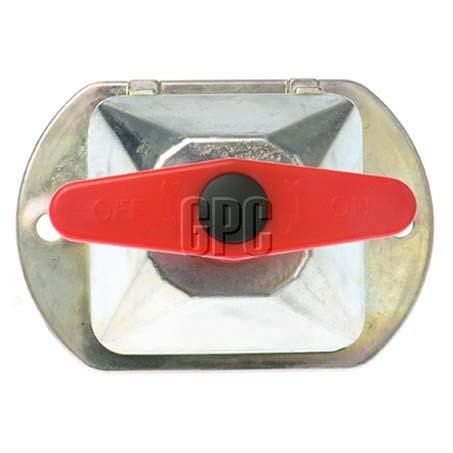

OEX BATTERY MASTER ISOLATION SWITCH ONOFF DPST CONTACTS RATED 250A 12V
by OEX
Original price
$452.40
-
Original price
$452.40
Original price
$452.40
-
Original price
$452.40
Original price
Current price
$452.40
$452.40
-
$452.40
Current price
$452.40
| Part No. | ACX3437 |
| Type | BATTERY MASTER SWITCH |
| Brand | OEX |
| Unit of Measure | EACH |
| Description | OEX Battery Master / Isolation Switch On/Off DPST (Contacts Rated 250A @ 12V) |
| Warranty | One Year |
| Number of Terminals | 4 |
| Power Rating (Amp) | 250 |
| Switch Action | On - Off - DPST |
| Voltage | 12 |
| Lamp Colour/s | Not Applicable |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Switch Type | Battery Master / Isolation |
| Switch Illumination | Non Illuminated |
| Weight | 1.22kg |

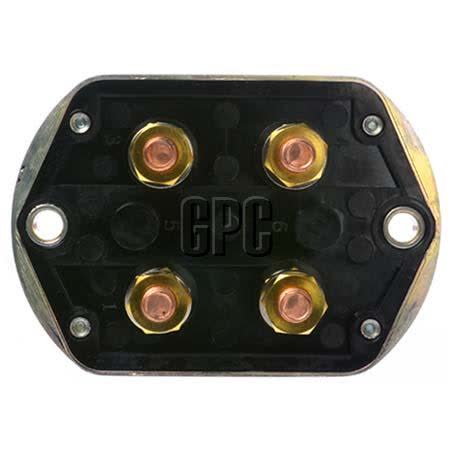

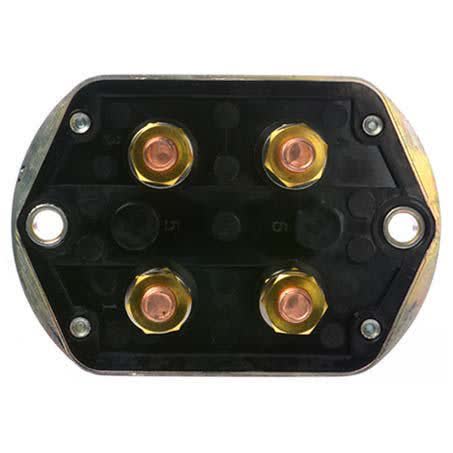

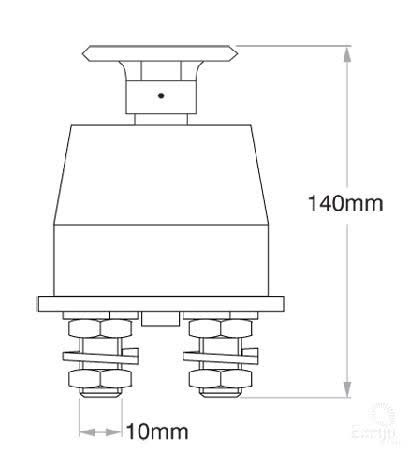

| Features | • 2 Position, On - Off. Double pole. • Four 10.00mm terminals. • Rated IP65. • Surface mounting required. • Metal housing. • Mounting hole centre to centre: 110.00mm. • Temperature rating -40°C to 85°C. • 250amp continuous @ 12volt. • 2500amp intermittent rating (5 seconds). |
| Product Group 1 | AUTO ELEC ACCESSORIES |
| Product Group 2 | FUSES BREAKERS RELAYS SWITCHES |
