MAHLE DC MOTOR 12V 21KW CW - FEMALE SLOT DRIVE SHAFT
by MAHLE
Original price
$1,233.70
-
Original price
$1,233.70
Original price
$1,233.70
$1,233.70
-
$1,233.70
Current price
$1,233.70
| Part No. | MM64 |
| Type | DC MOTOR | Brand | MAHLE |
| Unit of Measure | EACH | Description | Mahle DC Motor 12V 2.1kW CW - Female Slot Drive Shaft |

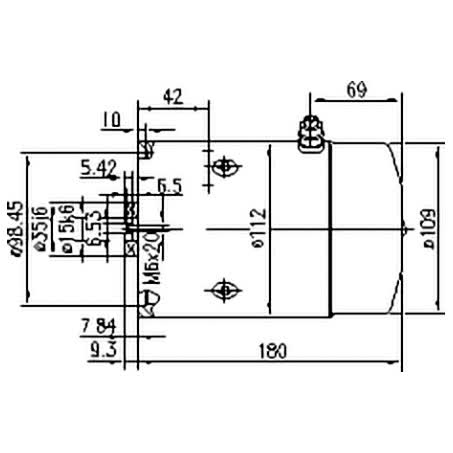

| Warranty | One Year | Body Diameter | 112mm |
| Flange Diameter | 98.45mm | Overall Length | 180mm |
| Power Rating | 2.1kW | Rotation | CW |
| Voltage | 12 | Note | Hydraulics pump applications, Insulated ground IP rating = IP54 Operating time = up to 1 min Female slot |
| Pump Capacity | 2000l/m | Shaft Drive Type | Female |

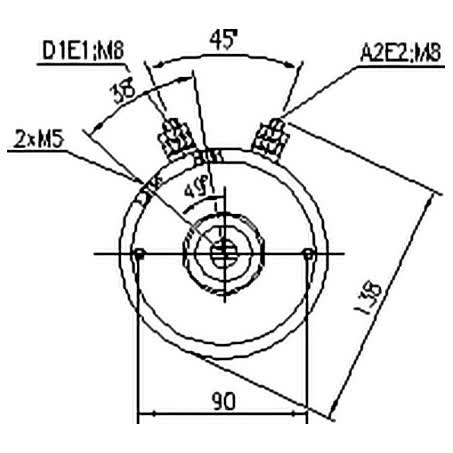

| Mount Cnt to Cnt | 90mm | Insulated Return | Yes |
| Power [kW] | 2.1 | Service Speed [1/min] | 2000 |
| Packaging length | 25.0 | Packaging width | 16.60 |
| Packaging height | 13.60 | Net Weight | 7045 |
| Weight | 7.0kg | Features | • To Suit: DC motor • IP rating - IP54 |
| Product Group 1 | ROTATING ELECTRICAL | Product Group 2 | MOTORS |
