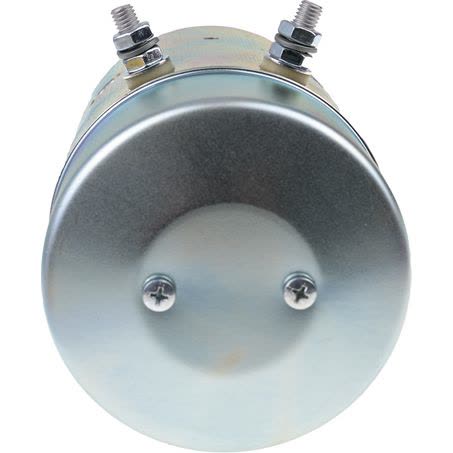

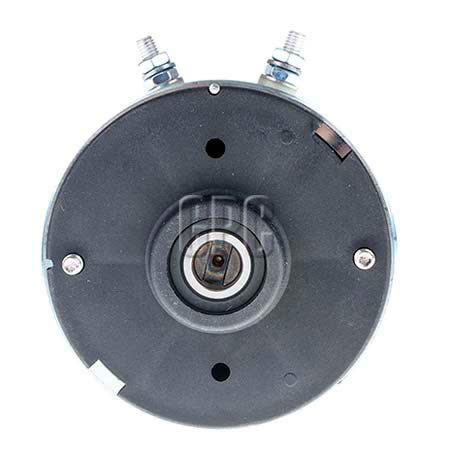

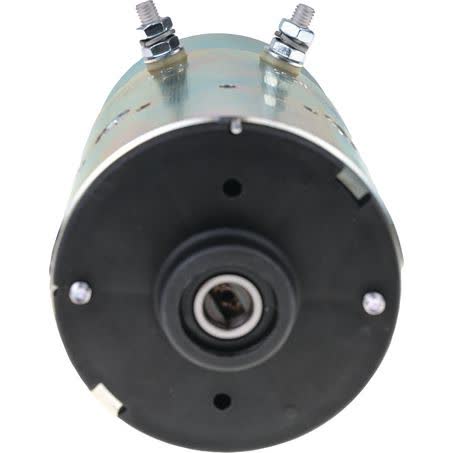

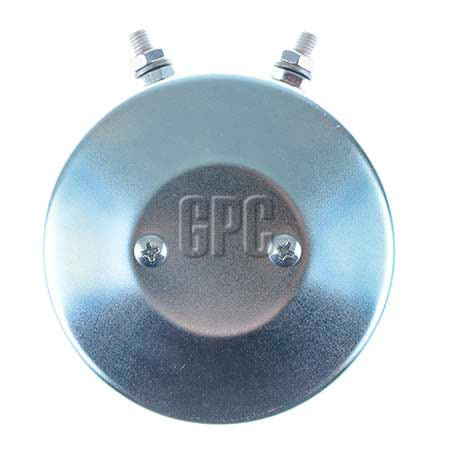

MAHLE DC MOTOR 24V 19KW CCW - FEMALE SLOT DRIVE SHAFT
by MAHLE
Original price
$930.80
-
Original price
$930.80
Original price
$930.80
$930.80
-
$930.80
Current price
$930.80
| Part No. | MM222 |
| Type | DC MOTOR | Brand | MAHLE |
| Unit of Measure | EACH | Description | Mahle DC Motor 24V 1.9kW CCW - Female Slot Drive Shaft |

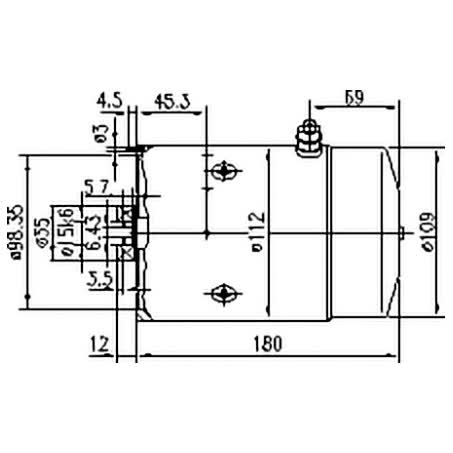

| Warranty | One Year | Body Diameter | 112mm |

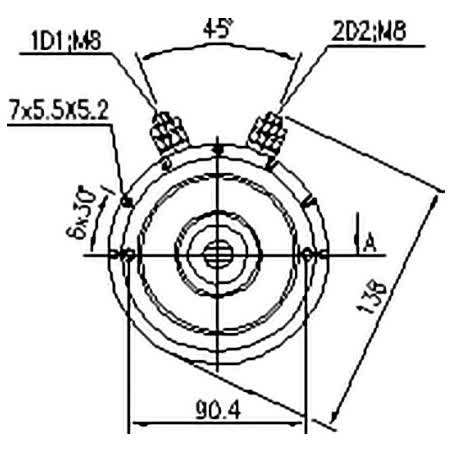

| Flange Diameter | 98.35mm | Overall Length | 180mm |
| Power Rating | 1.9kW | Rotation | CCW |
| Voltage | 24 | Note | Solenoid to suit MX25 4300 RPM IP54 Operating time to 4 min |
| Shaft Drive Type | Female | Mount Cnt to Cnt | 90.4mm |
| New / Reman. | New | OEM Number | 72736438 |
| Power [kW] | 1.9 | Service Speed [1/min] | 4300 |
| Packaging length | 25.0 | Packaging width | 16.60 |
| Packaging height | 13.60 | Net Weight | 7000 |
| Weight | 7.0kg | Features | • To Suit: DC motor |
| Product Group 1 | ROTATING ELECTRICAL | Product Group 2 | MOTORS |
