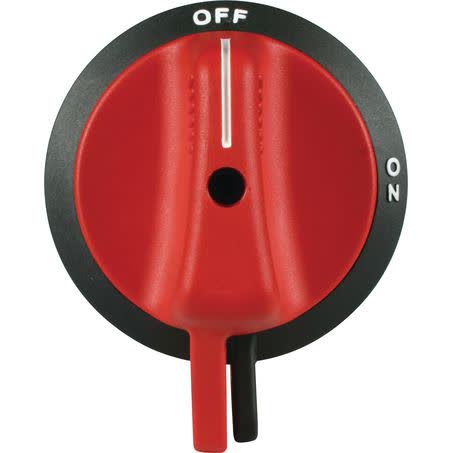

COLE HERSEE BATTERY MASTER SWITCH SPST ONOFF - RED HANDLE
by COLE HERSEE
Original price
$292.50
-
Original price
$292.50
Original price
$292.50
$292.50
-
$292.50
Current price
$292.50
| Part No. | 75920BX |
| Type | BATTERY ISOLATOR | Brand | COLE HERSEE |
| Unit of Measure | EACH | Description | Cole Hersee Battery Master Switch SPST On/Off - Red Handle |
| Warranty | One Year | Number of Terminals | 2 |
| Power Rating (Amp) | 300 | Switch Action | On - Off - SPST |
| Voltage | 12 | Lamp Colour/s | Not Applicable |
| Mount Diameter | 22mm | Mount Length | 7mm |
| Number of Poles | 1 | Number of Positions | 2 |
| Switch Type | Battery Master / Isolation | Switch Illumination | Non Illuminated |

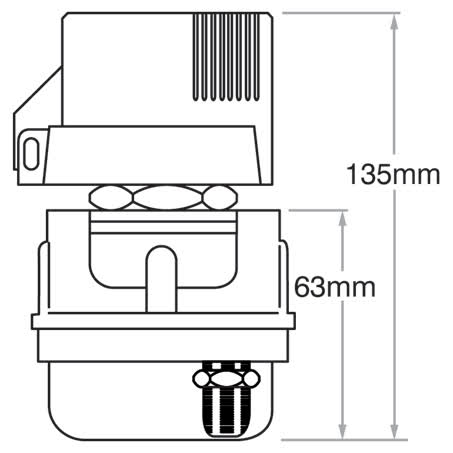

| Features | • 6V - 36V multivoltage • 300A continuous, 1000A to 3000A intermittent • SPST On / Off • 2 x battery studs 3/8"-24 • Mounting stem 3/4"-16 thread, L 22mm • IP68 • Strong black ABS body • Silver laminated contacts • Built in security locking • Indexing pin aligns switch and prevents rotation • O-ring seal on mounting shaft • Suits panel thickness 12mm • Application: heavy duty, mining • Dimensions: H 136 x D 86, W 70mm |
Product Group 1 | AUTO ELEC ACCESSORIES |
| Product Group 2 | FUSES BREAKERS RELAYS SWITCHES |
