OEX IGNITION SWITCH ACC - OFF - IGN - START CONTACTS RATED 30A 12V
by OEX
Original price
$58.50
-
Original price
$58.50
Original price
$58.50
$58.50
-
$58.50
Current price
$58.50
| Part No. | ACX3556BL |
| Type | IGNITION SWITCH | Brand | OEX |
| Unit of Measure | EACH | Description | OEX Ignition Switch Acc - Off - Ign - Start (Contacts Rated 30A @ 12V) |
| Warranty | One Year | Number of Terminals | 4 |
| Power Rating (Amp) | 30 | Switch Action | Acc - Off - ign - Start |
| Voltage | 12 | Lamp Colour/s | Not Applicable |
| Mount Diameter | 19mm | Mount Length | 8mm |
| Number of Poles | 1 | Number of Positions | 4 |
| Switch Type | Ignition | Item Type | Switch |
| Switch Illumination | Non Illuminated | Weight | .16kg |

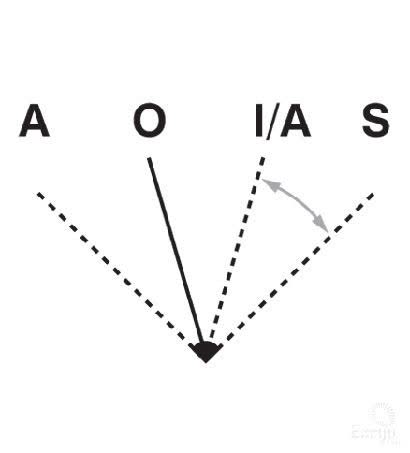

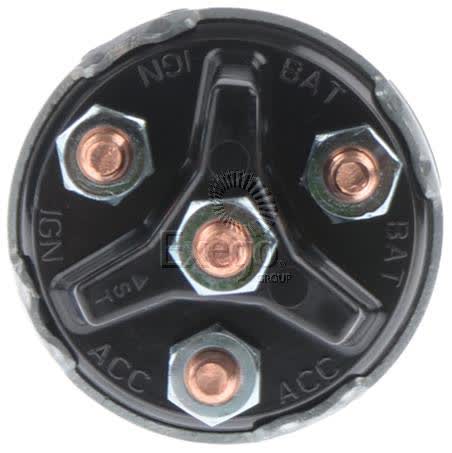

| Features | • 4 Position, Acc - Off - Ign/Acc - Ign/Start. Supplied with 2 keys. • 4 Stud terminals 10-32 U.N.F. x 8.00mm long. • Key removable in Off position only. • Mounting stem: 19.00mm diameter. • Fits panel thickness up to 8.00mm. |
Product Group 1 | AUTO ELEC ACCESSORIES |
| Product Group 2 | FUSES BREAKERS RELAYS SWITCHES |
