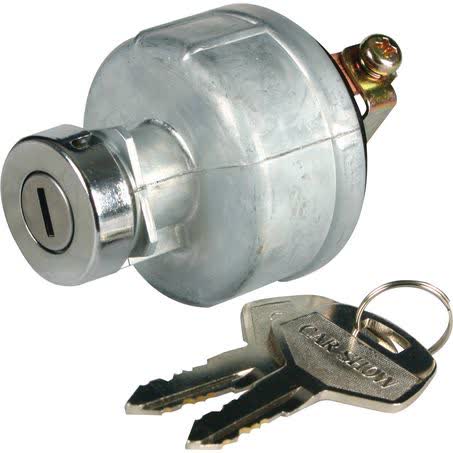

OEX IGNITION SWITCH GLOW - OFF - ACCIGN - START CONTACTS RATED 30A 12V
by OEX
Original price
$67.60
-
Original price
$67.60
Original price
$67.60
-
Original price
$67.60
Original price
Current price
$67.60
$67.60
-
$67.60
Current price
$67.60
| Part No. | ACX3562 |
| Type | IGNITION SWITCH |
| Brand | OEX |
| Unit of Measure | EACH |
| Description | OEX Ignition Switch Glow - Off - Acc/Ign - Start (Contacts Rated 30A @ 12V) |
| Warranty | One Year |
| Number of Terminals | 6 |
| Power Rating (Amp) | 30 |

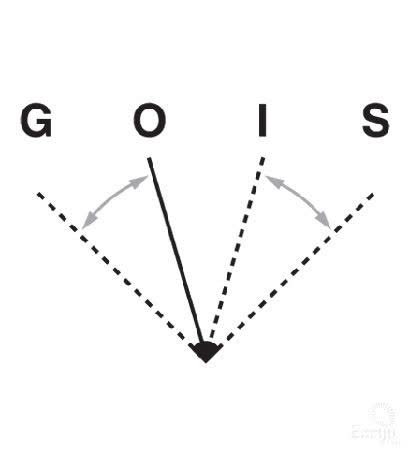

| Switch Action | Glow - Off - Acc/Ign - Start |
| Voltage | 12 |
| Lamp Colour/s | Not Applicable |
| Mount Diameter | 25mm |
| Mount Length | 2mm |
| Number of Poles | 2 |
| Number of Positions | 4 |
| Switch Type | Ignition |
| Switch Illumination | Non Illuminated |
| Weight | .22kg |
| Features | • B1 and B2 are linked (with linking connection supplied) and are to be supplied with a 'battery feed' • G1 and G2 are linked (with linking connection supplied) and will supply power to the 'glow' circuit when the switch is activated. • M is the 'ignition' output from the switch • S is the 'start wire output' from the switch |
| Product Group 1 | AUTO ELEC ACCESSORIES |
| Product Group 2 | FUSES BREAKERS RELAYS SWITCHES |
