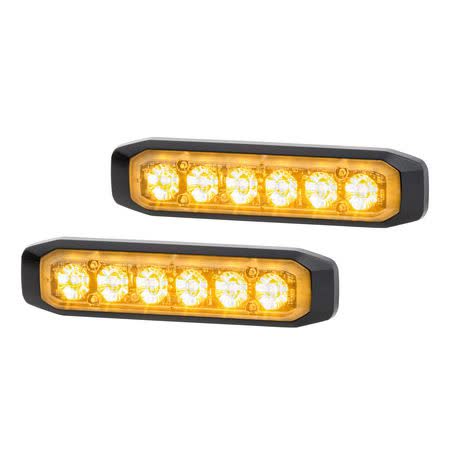

HELLA - 1224V BST SLIM DIRECTIONAL WARNING LAMP AMBER 6 LED SURFACE MOUNT - 2 PCS
by HELLA
Original price
$653.90
-
Original price
$653.90
Original price
$653.90
$653.90
-
$653.90
Current price
$653.90
| Part No. | 2XD 014 562-401 |
| Type | OTHER | Brand | HELLA |
| Unit of Measure | EACH | Description | HELLA - 12/24V BST Slim Directional Warning Lamp, Amber 6 LED, Surface Mount - 2 PCS |
| Warranty | Five Years | Length | 132mm |
| Voltage | 12 or 24 | Note | Day / Night mode. 250mm cable |
| Width | 32mm | Height | 13mm |
| Beacon Mounting | Surface | Beacon Style | LED Strobe |
| Colour | Amber | Lens Material | Polycarbonate |
| Current | 1.4A @ 12V | LEDs | 6 |
| Environmental | IPX7, IPX9K | Voltage Rating | 11 to 30 |
| Compliance | SAE J595 Class 1, ECE R10 | Base Material | Aluminium |
| Flash Rate (FPM) | 5 Selectable Patterns | Lens Colour | Clear |
| Temp Range | -40 °C to +80 °C | Light Design | LED |
| Light Function | with flashing warning signal | Fastening Type | For horizontal fastening |
| Housing Colour | black | Power Consumption [W] | 17 |
| LED Colour | amber | Fulfils ECE norm. | R10 |
| Operating temperature from [?C] | -40 | Operating temperature to [C?] | +80 |
| Weight | 0.076kg | Features | • Surface mount, Low Profile (13mm) with 250mm cable • 5 Selectable flash patterns with day/night mode • Pack of 2 • Waterproof Rating IPX7 & IPX9K • SAE J595 Class 1 luminous intensity, ECE R10 EMC • Power consumption 13-17W |
| Product Group 1 | LIGHTING | Product Group 2 | EMERGENCY LIGHTING |
