OEX PUSH BUTTON SWITCH OFF - MOM ON - SPST 12V GREEN ILLUMINATED CONTACTS RATED 50A 12V
by OEX
Original price
$50.70
-
Original price
$50.70
Original price
$50.70
$50.70
-
$50.70
Current price
$50.70
| Part No. | ACX3674BL |
| Type | SWITCH | Brand | OEX |
| Unit of Measure | EACH | Description | OEX Push Button Switch Off - Mom On - SPST 12V Green Illuminated (Contacts Rated 50A @ 12V) |
| Warranty | One Year | Number of Terminals | 3 |
| Power Rating (Amp) | 50 | Switch Action | Off - Mom On - SPST |
| Voltage | 12 | Lamp Colour/s | Green |

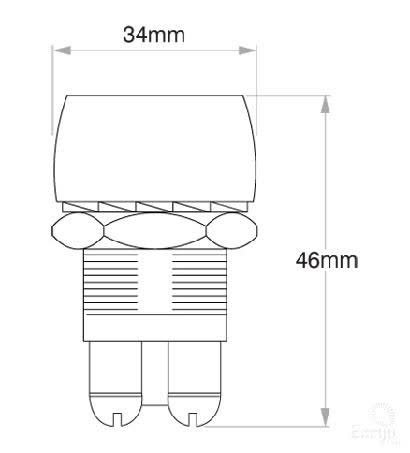

| Mount Diameter | 22mm | Mount Length | 12mm |

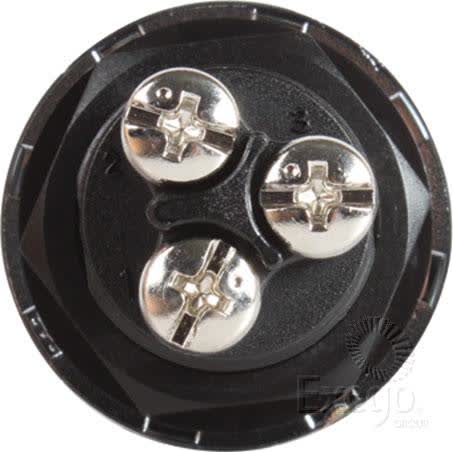

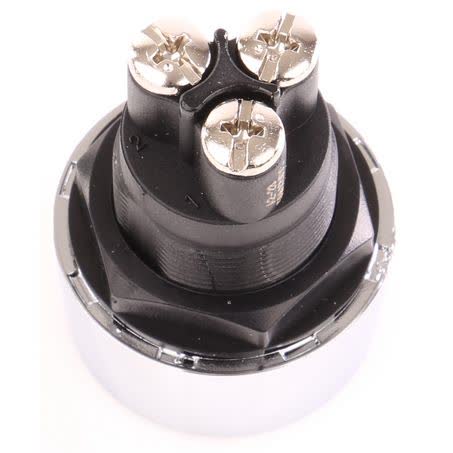

| Note | Terminal connections: Terminal 1 = Ignition feed, Terminal 2 = Start feed to Solenoid, Terminal 3 = Earth connection for Active illumination of the button | Number of Poles | 1 |
| Number of Positions | 2 | Switch Type | Push |
| Item Type | Switch | Switch Illumination | Illuminated |

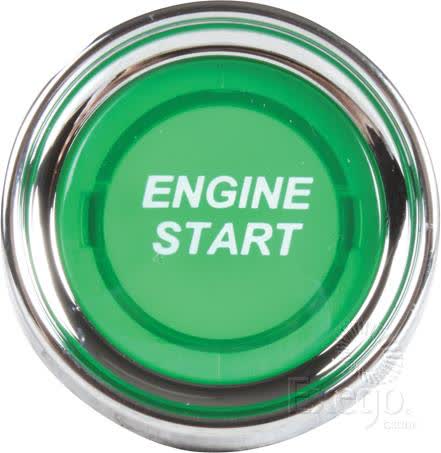

| Weight | .04kg | Features | • Push Button Engine Start Switch - Green • Voltage: 12V • Mounting Stem: Dia. 22mm • AMPS 50A@ 12V • Function: MOM ON-OFF • 3 x Blade Terminals • Illumination: Green • Silver Contacts • Note: For 24V Applications, use • Part No. ACX3912 (Resistor) |
| Product Group 1 | AUTO ELEC ACCESSORIES | Product Group 2 | FUSES BREAKERS RELAYS SWITCHES |
