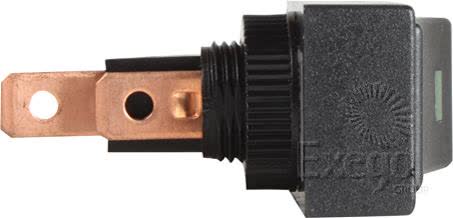

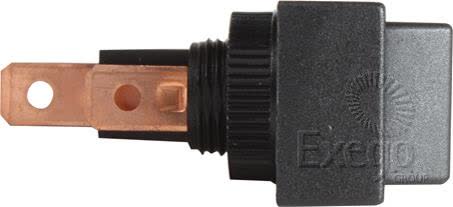

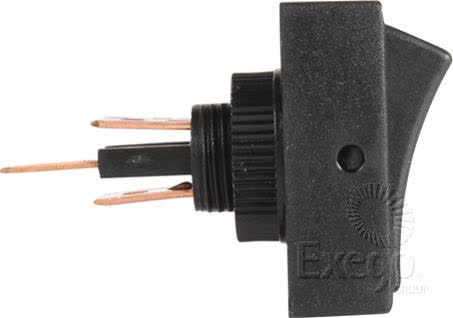

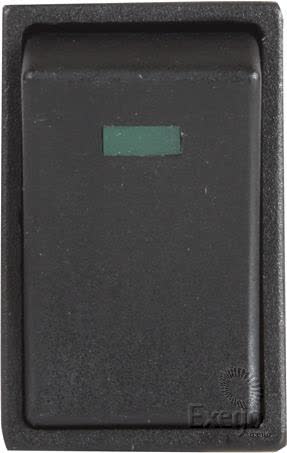

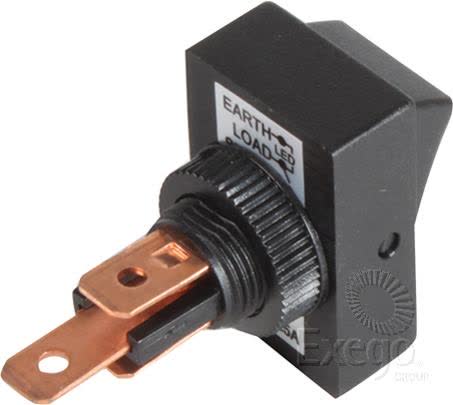

OEX PUSH BUTTON SWITCH ONOFF SPST 12V GREEN ILLUMINATED CONTACTS RATED 20A 12V
by OEX
Original price
$10.40
-
Original price
$10.40
Original price
$10.40
$10.40
-
$10.40
Current price
$10.40
| Part No. | ACX3748BL |
| Type | SWITCH | Brand | OEX |
| Unit of Measure | EACH | Description | OEX Push Button Switch On/Off SPST 12V Green Illuminated (Contacts Rated 20A @ 12V) |

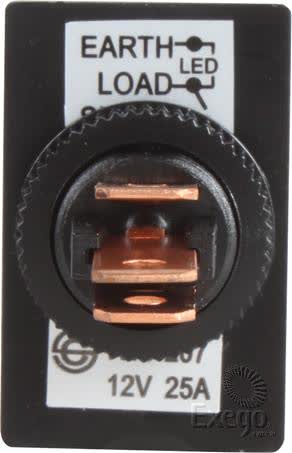

| Warranty | One Year | Number of Terminals | 3 |
| Power Rating (Amp) | 20 | Switch Action | On - Off - SPST |
| Voltage | 12 | Lamp Colour/s | Green |

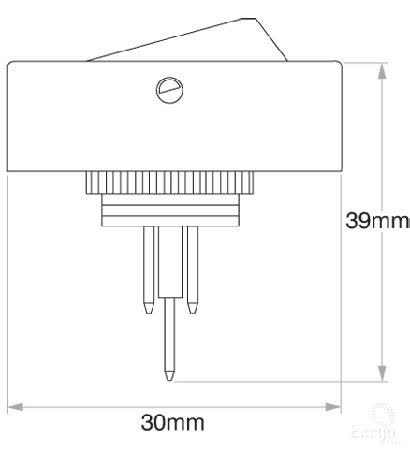

| Mount Diameter | 12mm | Mount Length | 4mm |
| Note | NOTE: For 24V applications, use Part No. ACX3912 resistor with the switch | Number of Poles | 1 |
| Number of Positions | 2 | Switch Type | Rocker |
| Switch Illumination | Illuminated | Weight | .03kg |
| Product Group 1 | AUTO ELEC ACCESSORIES | Product Group 2 | FUSES BREAKERS RELAYS SWITCHES |
