OEX PUSHPULL SWITCH ONOFF SPST CONTACTS RATED 75A 12V
by OEX
Original price
$55.90
-
Original price
$55.90
Original price
$55.90
$55.90
-
$55.90
Current price
$55.90
| Part No. | ACX3644BL |
| Type | SWITCH | Brand | OEX |
| Unit of Measure | EACH | Description | OEX Push/Pull Switch On/Off SPST (Contacts Rated 75A @ 12V) |
| Warranty | One Year | Number of Speeds | 1 |
| Number of Terminals | 2 | Power Rating (Amp) | 75 |
| Switch Action | On - Off - SPST | Voltage | 12 |
| Lamp Colour/s | Not Applicable | Mount Diameter | 12mm |
| Mount Length | 11mm | Number of Poles | 1 |
| Number of Positions | 2 | Switch Type | Push - Pull |
| Item Type | Switch | Switch Illumination | Non Illuminated |

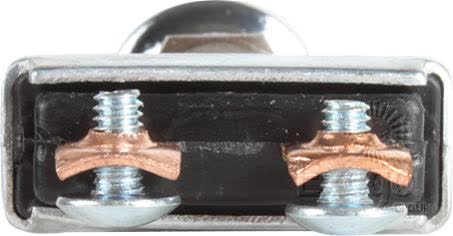

| Weight | .16kg | Features | • 2 Position Off / On. • 2 Screw terminals. • Silver contacts. • Mounting stem: 12.00mm diameter. • Fits panel thickness up to 11.00mm. |
| Product Group 1 | AUTO ELEC ACCESSORIES | Product Group 2 | FUSES BREAKERS RELAYS SWITCHES |
