OEX TOGGLE SWITCH ONOFF SPST CONTACTS RATED 20A 12V
by OEX
Original price
$11.70
-
Original price
$11.70
Original price
$11.70
$11.70
-
$11.70
Current price
$11.70
| Part No. | ACX3874BL |
| Type | SWITCH | Brand | OEX |
| Unit of Measure | EACH | Description | OEX Toggle Switch On/Off SPST (Contacts Rated 20A @ 12V) |
| Warranty | One Year | Number of Terminals | 2 |
| Power Rating (Amp) | 20 | Switch Action | On - Off - SPST |
| Voltage | 12 | Lamp Colour/s | Not Applicable |

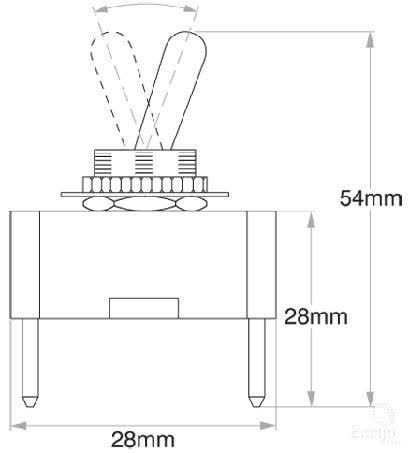

| Mount Diameter | 12mm | Mount Length | 3mm |
| Number of Poles | 1 | Number of Positions | 2 |
| Switch Type | Toggle | Item Type | Switch |
| Switch Illumination | Non Illuminated | Weight | .02kg |
| Features | • Single Pole, Double Throw • 2 Blade terminals • Silver contacts • Metal body • Supplied with On - Off tab • 10Amp @ 24V • M12 x 0.75 thread • Can use 81264BL seal boot |
Product Group 1 | AUTO ELEC ACCESSORIES |
| Product Group 2 | FUSES BREAKERS RELAYS SWITCHES |
