STEDI ST3303 SERIES 11 INCH 12 LED DOUBLE ROW LIGHT BAR

by STEDI
Original price $0
Original price $351.00 - Original price $351.00
Original price
Current price $351.00
$351.00 - $351.00
Current price $351.00
Part No. LED3303-PRO-12L
Type LIGHT BAR
Brand STEDI
Unit of Measure EACH
Description Stedi ST3303 Series 11 Inch 12 LED Double Row Light Bar
Warranty Five Years
Voltage 9 - 32V
Note •5700K •1 LUX at 375
Beam Pattern Combination
Shape Bar
Size 246 X 94.2 X 67.8MMmm
Lens Material Lexan
Light Output 6,720 Effective Lumen
Current 5.9A @ 13.6V
LEDs 12
Body Material Alloy
Mount Side & Slide Mount
Connector Deutsch
Environmental IP68
Colour Temperature [K] 5700
Operating temperature from [?C] -40
Operating temperature to [C?] 150
Raw Lumens [lm] 13140
Effective Lumens [lm] 6720
Weight 1295kg
Features • 12 x CREE XLamp XP-L HI undomed LEDs using CREE’s breakthrough SC5 Technology
• 32mm diameter parabolic reflectors
• Spread and Spot beam pattern

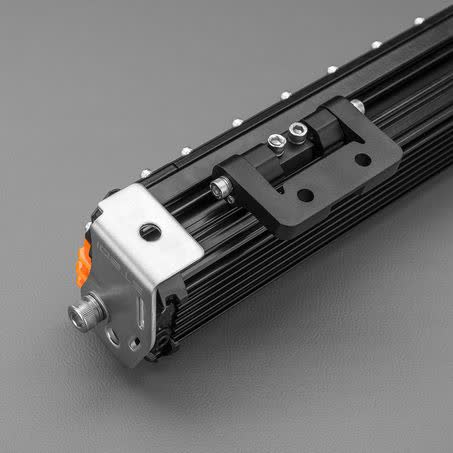

• 4mm thick 304 stainless steel side brackets included.
• Cast Alloy adjustable sliding bracket included.
• RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
• IP68 - Submersible to 3m
• Deutsch DT 15A connector
• Includes Smart Plug & Play ADR compliant Wiring Harness with HB3 and HB4 adapters
Product Group 1 LIGHTING
Product Group 2 DRIVING LIGHTS
