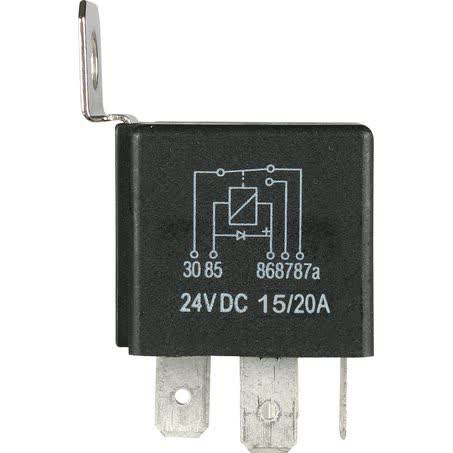

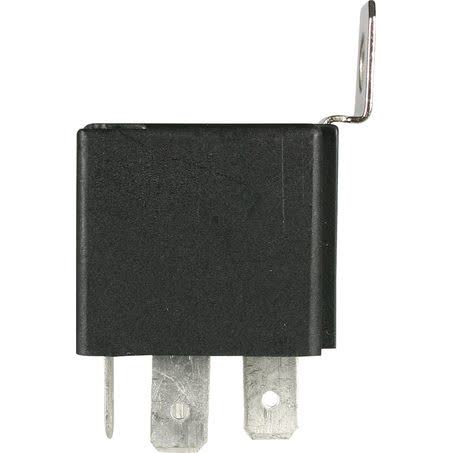

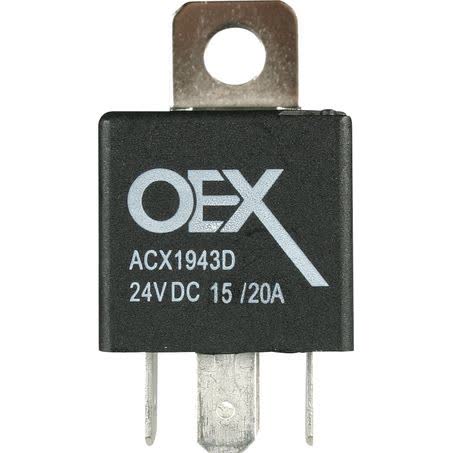

OEX MINI RELAY 24V CHANGE OVER 1520A - DIODE PROTECTED SEALED
by OEX
Original price
$32.50
-
Original price
$32.50
Original price
$32.50
-
Original price
$32.50
Original price
Current price
$32.50
$32.50
-
$32.50
Current price
$32.50
| Part No. | ACX1943DBL |
| Type | RELAY |
| Brand | OEX |
| Unit of Measure | EACH |
| Description | OEX Mini Relay 24V Change Over 15/20A - Diode Protected, Sealed |
| Warranty | One Year |

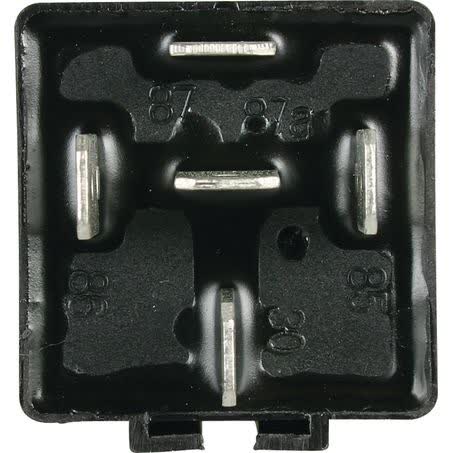

| Number of Terminals | 5 |
| Power Rating (Amp) | 15/20 |
| Voltage | 24 |
| Relay Action | Change Over |
| Spike Protection | Diode |
| Type (Mini / Micro) | Mini |
| Contact Material | Silver Tin Oxide |
| Weight | .06kg |
| Features | • 24V • 15/20A • 5 Pin • Diode protected • Sealed, IP67 • Change over contacts • Blade terminals • Removable mounting tab |
| Product Group 1 | AUTO ELEC ACCESSORIES |
| Product Group 2 | FUSES BREAKERS RELAYS SWITCHES |
