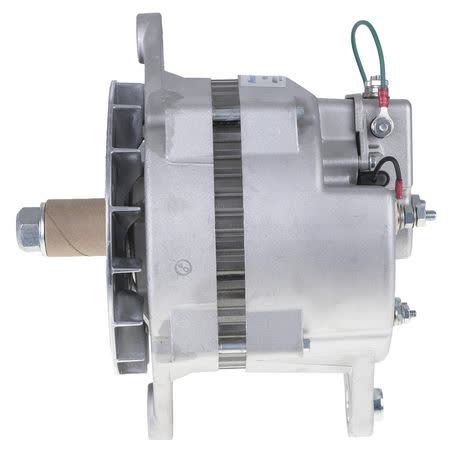

PRESTOLITE ALTERNATOR 12V 170A
by PRESTOLITE
Original price
$0
Original price
$1,510.60
-
Original price
$1,510.60
Original price
Current price
$1,510.60
$1,510.60
-
$1,510.60
Current price
$1,510.60
| Part No. | LBA2407 |
| Type | ALTERNATOR |
| Brand | PRESTOLITE |
| Unit of Measure | EACH |
| Description | Prestolite Alternator 12V 170A |
| Warranty | 2 Years 400,000km |
| Adjusting Hole Diameter | 1/2 UNC |
| Inside Mounting Legs | 101mm |
| Pivot Hole Diameter | 13 |
| Power Rating (Amp) | 170 |
| Pulley Section | Not Applicable |
| Regulator Type | Internal |
| Rotation | CW |
| Shaft Diameter | 22mm |
| Suits Unit Make | Prestolite |
| Voltage | 12 |

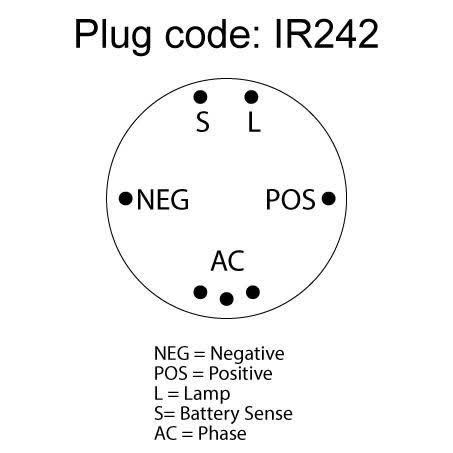

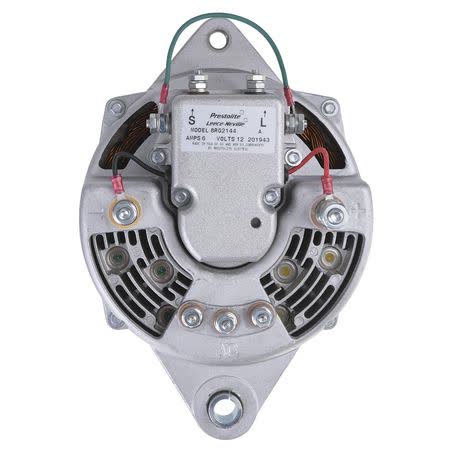

| Note | Remove jump lead for field isolation applications. Fitted with battery sense (S) and warning light (L) terminals *Note: If vehicle does not have a remote sense wire, a connection is required from the alternator Sense (S) to Pos Out terminals. |
| Alternator Mount | Twin Leg |
| Mount Cnt to Cnt | 216mm |
| New / Reman. | New |
| Insulated Return | Yes |
| Shaft Dimension | 22 |
| Weight | 8.94kg |
| Features | • Field Isolated • Above ground • Self excitation (optional lamp terminal) • Remote sense • Uses high temperature grease and seals for longer bearing life • Fan design offers more efficient air flow and cooler operation under high output load conditions |
| Product Group 1 | ROTATING ELECTRICAL |
| Product Group 2 | ALTERNATORS |
