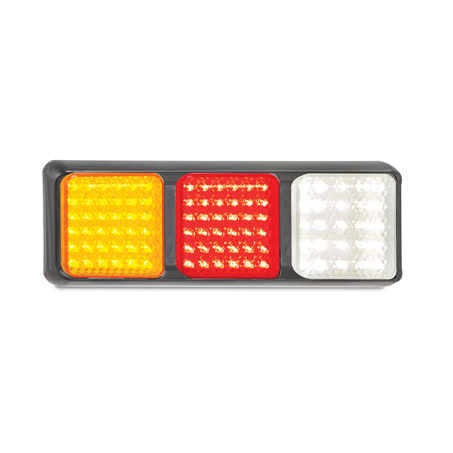

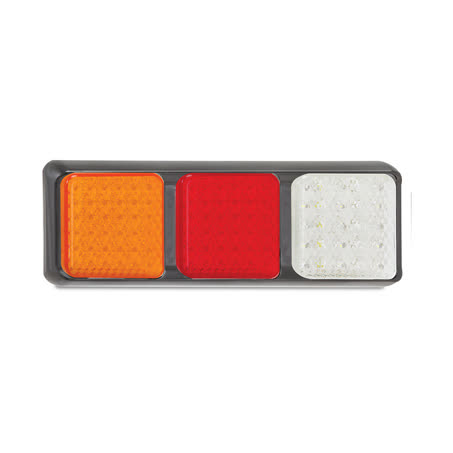

LEDAUT 1224 MULTI VOLT STOPTAILINDICATORREVERSE ASSEMBLY LAMP WITH 108 LEDS
Original price
$0
Original price
$332.80
-
Original price
$332.80
Original price
Current price
$332.80
$332.80
-
$332.80
Current price
$332.80
| Part No. | 80BARWM |
| Type | LAMP COMBINATION STOP / TAIL / TURN / REV |
| Brand | LED AUTOLAMPS |
| Unit of Measure | EACH |
| Description | LEDAUT 12/24 Multi Volt Stop/Tail/Indicator/Reverse Assembly Lamp With 108 LEDs |
| Warranty | Five Years |
| Voltage | 12 to 24 |
| Light Style | Stop/Tail/Indicator/Reverse Light |
| Light Type | LED |

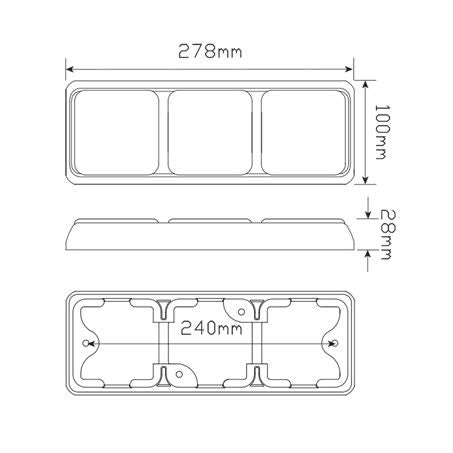

| Mount Cnt to Cnt | 240mm |
| Size | 278 x 100 x 28mm |
| Current | Stop: 0.33A, Tail: 0.06A, Indicator: 0.31A, Reverse: 0.17A @ 13.8V |
| Mount | Surface Mount |
| Connector | Pre-Wired |
| Environmental | IP67 |
| Compliance | Stop/Tail: CRN33059, Indicator: CRN33098, Reverse: CRN35797 |
| Length | 4 |
| Width | 36 |
| Height | 12 |
| Housing Colour | black |
| Manufacturer Approval | ADR - CTA060070 |
| Manufactured in | China (Taiwan) |
| Packaging | Blister Packaging |
| Input voltage from [V] | 12 |
| Input voltage up to [V] | 24 |
| Inner Carton Quantity | 10 |
| Outer Carton Quantity | 20 |
| Weight | 0.461kg |
| Features | • Individual Lens Replacements • ADR Road Approved • IP67 Rated • Voltage Range 12-24 Volt • 5 Year Warranty • 278mm x 100mm x 28mm |
| Product Group 1 | LIGHTING |
| Product Group 2 | TRUCK & TRAILER LIGHTING |
