ECCO 1224V LED HEAVY DUTY AMBER BEACON 3 BOLT FIXED MOUNT
by ECCO
Original price
$611.00
-
Original price
$611.00
Original price
$611.00
-
Original price
$611.00
Original price
Current price
$611.00
$611.00
-
$611.00
Current price
$611.00
| Part No. | EB8160A |
| Type | ROTATING/STROBE BEACONS |
| Brand | ECCO |
| Unit of Measure | EACH |
| Description | ECCO 12/24V LED Heavy Duty Amber Beacon 3 Bolt Fixed Mount |
| Warranty | Five Years |
| Voltage | 12 or 24 |
| Note | Pitch Circle Diameter: 107mm, 130mm & 150mm |

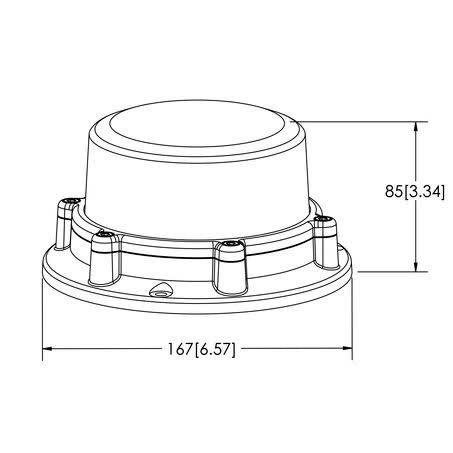

| Width | 167mm |
| Height | 85mm |
| Beacon Mounting | Permanent |
| Beacon Style | LED |
| Colour | Amber |
| Lens Material | Polycarbonate |
| Light Output | SAE J845 Class 1 |
| Current | 4.4A @12V, 2.2A @ 24V |
| LEDs | 24 |
| Environmental | IP67, IP6K9K |
| Voltage Rating | 10 to 32 |
| Compliance | SAE Class 1, CISPR25 C5, ECE R10 |
| Base Material | Aluminium |
| Flash Rate (FPM) | 20 Selectable Patterns |
| Lens Colour | Amber |
| Temp Range | -40ºC to 60ºC |
| Features | • 20 Flash patterns including new Pulse and 3 auto-dimming patterns • SAE Class 1A light output (W3-1) • IP67 and IP69K • CISPR-25 Class 5 radiated and conducted emissions • ECCO 5 Year No- Hassle Warranty |
| Product Group 1 | LIGHTING |
| Product Group 2 | EMERGENCY LIGHTING |
