COLE HERSEE 500A DUAL POLE MASTER DISCONNECT SWITCH 48V DC BLACK HANDLE - TR SERIES
by COLE HERSEE
Original price
$0
Original price
$353.60
-
Original price
$353.60
Original price
Current price
$353.60
$353.60
-
$353.60
Current price
$353.60
| Part No. | 880175BX |
| Type | BATTERY MASTER SWITCHES |
| Brand | COLE HERSEE |
| Unit of Measure | EACH |
| Description | Cole Hersee 500A Dual Pole Master Disconnect Switch, 48V DC Black Handle - TR Series |
| Warranty | One Year |
| Number of Terminals | 4 |
| Power Rating (Amp) | 500 |

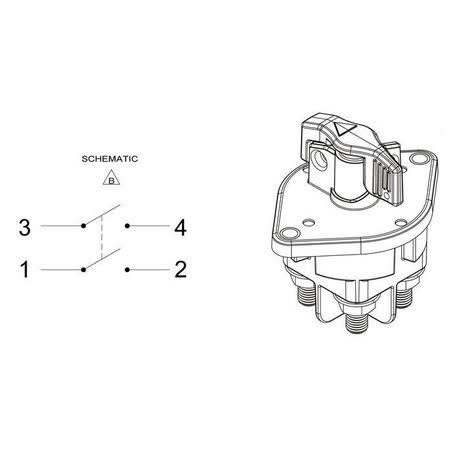

| Switch Action | On - Off - DPST |
| Voltage | 48V DC |
| Lamp Colour/s | Black Handle |
| Note | Direct lockout/tagout capability in On or Off position, with padlock or hasp. Integrated Lock-Out Tag-Out. Terminal Stud Size: M12 x 25mm. IP67 & IP69K. Temp rating: -50C to +85C, DC rated to 105C |
| Number of Poles | 2 |
| Switch Type | Battery Master / Isolation |
| Item Type | 500A Dual Pole Battery Master Disconnect Switch |

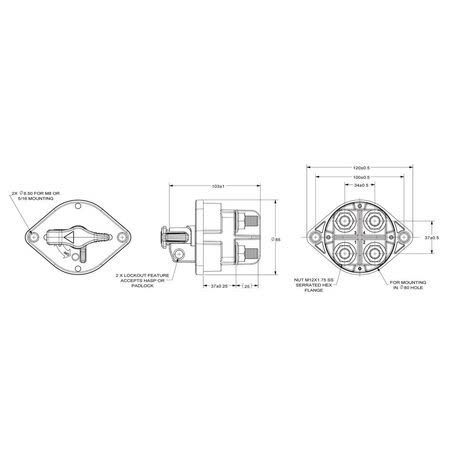

| Features | • 6V - 48V multivoltage • 500A continuous • DPST On / Off • 2 x 4/0 input and 2 x 4/0 output cables • 2 x battery studs 3/8"-24 • Terminal stud size: M12 x 25mm • Shock: 30G • Vibration: 8G • Ingress protection to IP67 and IP69K means that the switch can be mounted in exposed locations on the vehicle • Dimensions: H 85 x D 103 x W 120mm |
| Product Group 1 | AUTO ELEC ACCESSORIES |
| Product Group 2 | FUSES BREAKERS RELAYS SWITCHES |
