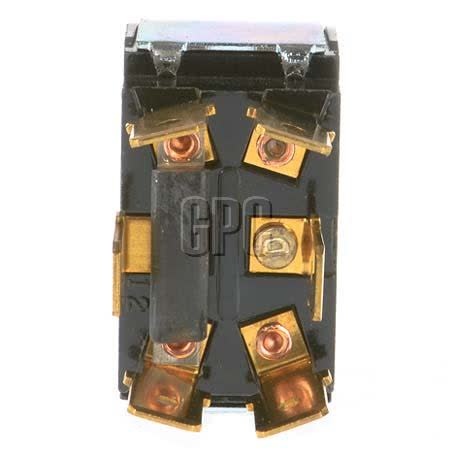

COLE HERSEE HEAD LIGHT TOGGLE SWITCH DPDT ONOFFON BLADE TERMINALS
by COLE HERSEE
Original price
$75.40
-
Original price
$75.40
Original price
$75.40
-
Original price
$75.40
Original price
Current price
$75.40
$75.40
-
$75.40
Current price
$75.40
| Part No. | 55064BL |
| Type | HEAD LAMP SWITCH |
| Brand | COLE HERSEE |
| Unit of Measure | EACH |
| Description | Cole Hersee Head Light Toggle Switch DPDT On/Off/On Blade Terminals |
| Warranty | One Year |
| Number of Terminals | 6 |
| Power Rating (Amp) | 25 |
| Switch Action | On - Off - On - Other |
| Voltage | 12 |
| Lamp Colour/s | Not Applicable |
| Mount Diameter | 12mm |
| Mount Length | 6mm |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Switch Type | Head Lamp / Dip |
| Switch Illumination | Non Illuminated |
| Features | • 12/24V dual voltage • 25A at 12V • 12A at 24V • DPDT On / Off / On • Bridged 4 circuit • 6 blade terminals • Silver contacts • Stem: thread 15/32-32, L 12mm D 12mm • Panel thickness: 6.35mm • Handle: 38mm • Dimensions: H 34 x D 94 x W 19mm |
| Product Group 1 | AUTO ELEC ACCESSORIES |
| Product Group 2 | FUSES BREAKERS RELAYS SWITCHES |
